Canvas LTI Integration

Canvas

Brainfuse Canvas App can be configured on the account or course level through App Configurations.

Open the External Apps link on the course or the system level.

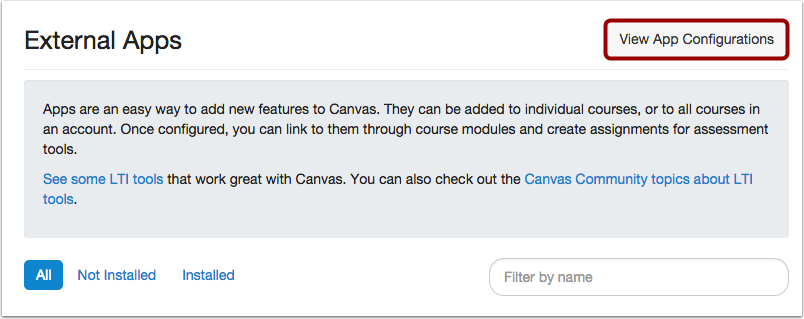

View App Configurations

To configure an app, click the View App Configurations button.

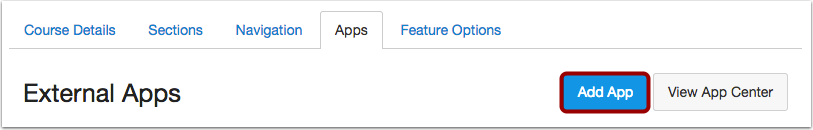

Add New Brainfuse App

Click the Add App button.



Set Configuration Type

Select the Configuration Type drop-down menu and set the configuration type to By URL.

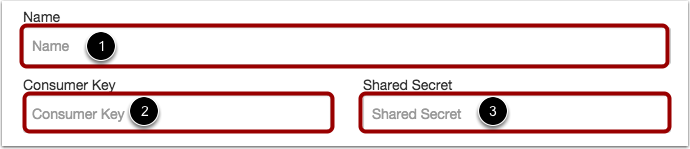

Add Tool Details

Enter the name of the App in the name field [1]. Enter the consumer key provided by Brainfuse in the consumer key field [2] and the shared secret provided by Brainfuse in the shared secret field [3]. This key and shared secret will be provided by Brainfuse during the setup process.

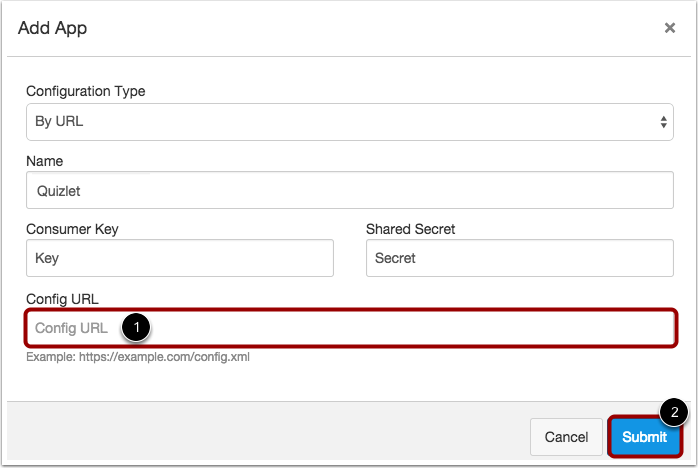

Enter Configuration URL: http://landing.brainfuse.com/basic_lti_helpnow.xml



Copy and paste the configuration URL http://landing.brainfuse.com/basic_lti_helpnow.xml in the configuration URL field [1]. Click the Submit button [2].
