Canvas LTI 1.3 Integration
Create an LTI developer key for each tool
1. Go to the root account of the Canvas instance and go to Developer keys.

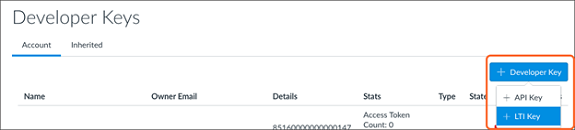

2. Select the + Developer Key button and select LTI Key.

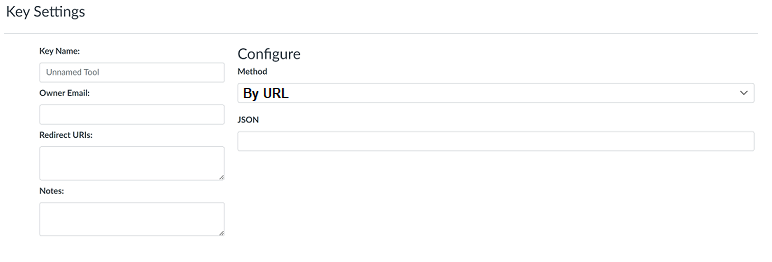

3. The Key Settings Configure screen opens.
Select the Method menu and select Enter URL.
1. JSON URL Provided by Brainfuse URL: https://landing.brainfuse.com/lti/canvas.asp
Hidden URL: https://landing.brainfuse.com/lti/canvas.asp?disabled=yes
Update the link with your Key from Brainfuse
2. Enter Key Name: Brainfuse Online Tutoring
3. Enter Owner Email: Email
4. Copy and paste this link into the Redirect URIs field from the last string of the JSON.
1: 2: 3: 4: 5: |
https://landing.brainfuse.com/ https://landing.brainfuse.com/link.asp https://landing.brainfuse.com/iframe.asp |
Select Save

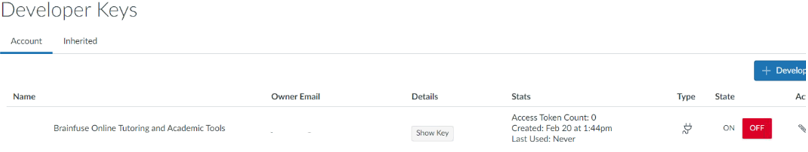

1. Select Save. The new key is added to the Developer keys page and is Off by default.
2. Turn the new key on.
3. Copy the key ID number and secret in the Details column. This key ID number is your unique client ID.
4. Provide Brainfuse with the Key ID and Secret.
Set up the tool
Follow these steps for the Institutional Report, Client Configuration, and Course Accessibility Report tools.
1. From the root account select Settings.
2. Select Apps and View App Configuration.

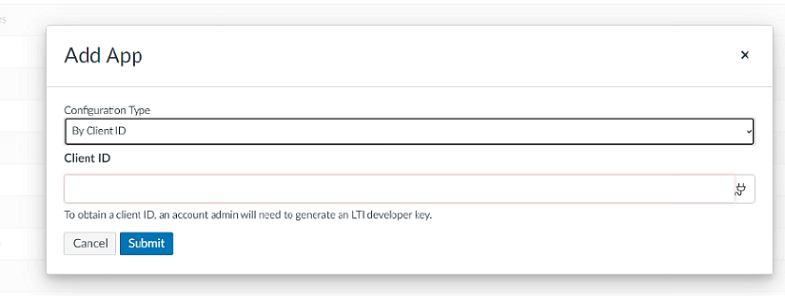

3. Select the add an App button.
4. From the Configuration Type menu select By Client ID.
5. Paste the client key ID number you gave to the Brainfuse team earlier into the Client ID field.
6. Select Submit.
7. Select Install.Manage App List +App
Questions?
1-866-272-4638
